The new gyro stabilzer for boats. The best one.
THE 3rd-GENERATION GYRO STABILIZER WITH ZGYRO® MECHATRONIC TORQUE CONTROL SYSTEM
Auto-Adaptive Stabilization with autonomous hull posture detection and self-regulating active control system, transforming every voyage into a silk-smooth journey across the waves.
Up To 95% rolling reduction even in extreme sea states.
Triple Protection System (Mechanical/Electromagnetic/Electronic) engineered for impact resilience, operational longevity, and minimized wear potential.
User-Accessible Architecture with 90%+ maintenance procedures executable through remote technical support

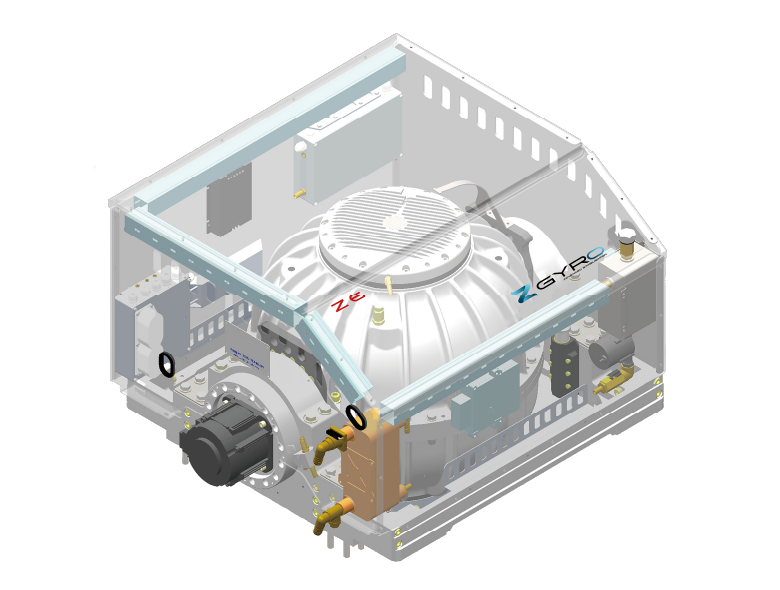

The Structure of ZGyro Stabilizer
CONFORT ON BOARD FOR EVERYONE
Widely used in official workboats, leisure yachts, leisure sea fishing boats, commercial cruise ships and law enforcement boats, etc. According to the special field of offshore platforms, military ships, etc., customization can be provided.
GYRO SYSTEM
This includes the flywheel and its base. The flywheel, placed vertically in a sealed casing, connects to the base via a side shaft and bearings. Its high-speed rotational movement produces anti-roll torque during procession, which helps reduce ship sway.
Drive System
Consisting of a servo motor and a servo motor controler, the servo motor adopts a frame-less structure and directly drives the flywheel shaft, ensuring high transmission eficiency while also having the advantage of a compact structure.
Torque Control System
Comprising a torque device, controller, reducer, buffer, and electromagnetic brake. The system utilizes ZGYRO®
patented integrated mechatronic torque device, combined with triple buffering protection, and surpasses traditional hydraulic systems in terms of compactness, durability, maintenance intervals (up to 5,000 hours of maintenance-free operation), reduced failures, maintenance convenience, and environmental friendliness (no oil pollution). It is also more capable of handling severe sea conditions.
Cooling System
Featuring a water tank, heat exchanger, water pump, piping, and antifreeze, this system uses the heat exchanger to exchange heat with seawater, subsequently cooling critical components like bearings, motors, and electronic
controls.
Gyro Control System
Consisting of a gyro controller and a touch control screen installed in the cockpit. The controller is specifically designed for adaptive active anti-roll control and is equipped with autonomous fault detection and an alarm- based shutdown mechanism. The touch screen supports one-button start-stop functionality, enabling fuly automatic operation, and allows for the monitoring of operational parameters, enhancing both intuitiveness and ease of use.
GYRO SYSTEM
This includes the flywheel and its base. The flywheel, placed vertically in a sealed casing, connects to the base via a side shaft and bearings. Its high-speed rotational movement produces anti-roll torque during procession, which helps reduce ship sway.
Drive System
Consisting of a servo motor and a servo motor controler, the servo motor adopts a frame-less structure and
directly drives the flywheel shaft, ensuring high transmission eficiency while also having the advantage of a
compact structure.
Torque Control System
Comprising a torque device, controller, reducer, buffer, and electromagnetic brake. The system utilizes ZGYRO®
patented integrated mechatronic torque device, combined with triple buffering protection, and surpasses
traditional hydraulic systems in terms of compactness, durability, maintenance intervals (up to 5,000 hours of
maintenance-free operation), reduced failures, maintenance convenience, and environmental friendliness (no oil
pollution). It is also more capable of handling severe sea conditions.
Cooling System
Featuring a water tank, heat exchanger, water pump, piping, and antifreeze, this system uses the heat exchanger
to exchange heat with seawater, subsequently cooling critical components like bearings, motors, and electronic
controls.
Gyro Control System
Consisting of a gyro controller and a touch control screen installed in the cockpit. The controller is specifically
designed for adaptive active anti-roll control and is equipped with autonomous fault detection and an alarm-
based shutdown mechanism. The touch screen supports one-button start-stop functionality, enabling fuly
automatic operation, and allows for the monitoring of operational parameters, enhancing both intuitiveness and
ease of use.
Over 40 years of experience in ship motion control and naval equipment.
Samos has a leading role in the supply of new systems to the most prestigious Italian shipyards.
ABOUT ZGYRO
Specializing in the research, development and manufacture of marine gyro stabilization and gyro stabilization platforms.
Shanghai ZGYRO® Technology Co., Ltd. is specialized in the R&D and manufacturing of marine gyro stabilizer and gyro stabilization platforms.
As one of the earliest enterprises engaged in the R&D of gyro stabilization in China, we have always adhered to independent research and development and continuous innovation, committed to reducing ship rolling and improving ship safety and comfort.
Reference cases
Contact us
Samos is dealer for ZGYRO® Technology Co., Ltd., a company based in Shangai, specialized in the production of third generation fully electric gyroscopic stabilizers.
